Features

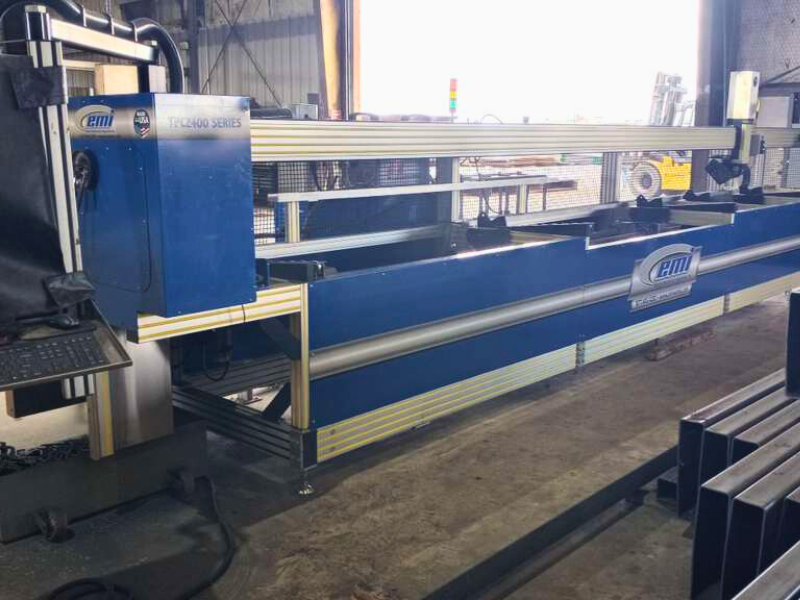

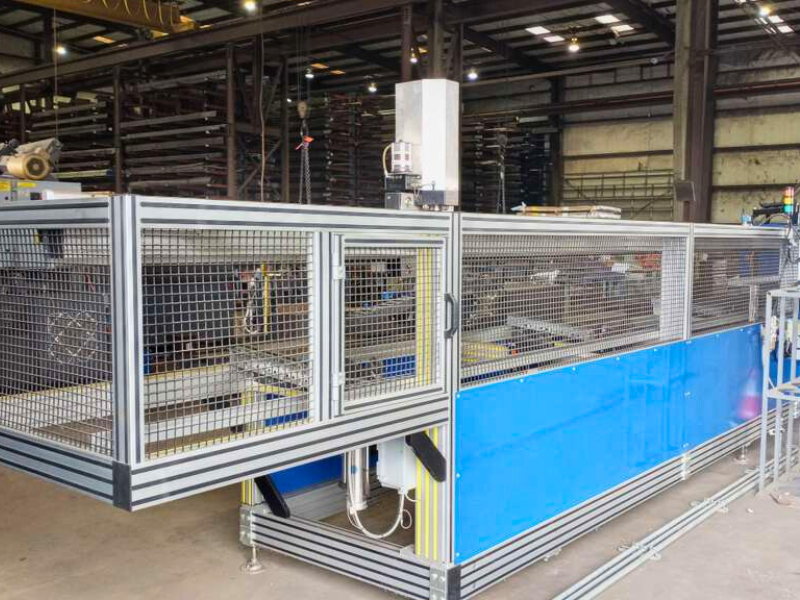

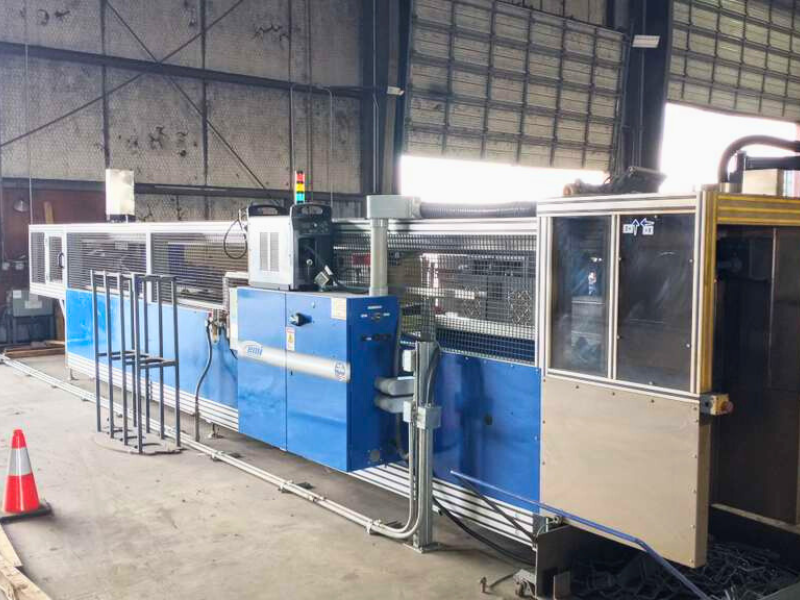

- Machine Model: EMI TPC 2464 (tube processing center)
- Machine Year: 2024
- Machine Hours: 350
- Machine Footprint: 28’-30’ L x 5’ W x 6’ H
- Machine Weight: 4,200-4,600 lbs
- Hypertherm Powermax SYNC 105-amp robotic plasma torch
- Auxiliary gas hook-up for stainless steel cutting
- 5 Servo-Driven Axes: X, A, Z, Y, U
- Processes up to 24’ stock lengths at 30 lbs/ft
- Automatic loading for round material
- Assisted loading for non-round profiles
- Pneumatic 2-jaw chuck / gripper
- Six jaw sets included (1.0”-6.7” diameter capacity, up to 6” pipe)
- Centroid CNC control with high-quality AC servo package
- Swinging dual monitor station
- Cabinet air conditioner
- Uninterruptible Power Supply (UPS)
- Power filter protection
- Air blast system
- Safety light curtain system
- PieceMaker PRO software
- Lantek Flex3D Tubes Plus software
Buyer Responsibilities
- The buyer is responsible for coordinating machine decommissiong, rigging, and transport to the final destination
- All logistics and details must be confirmed by the purchasing party
- SFT offers decommissioning and rigging services upon request
